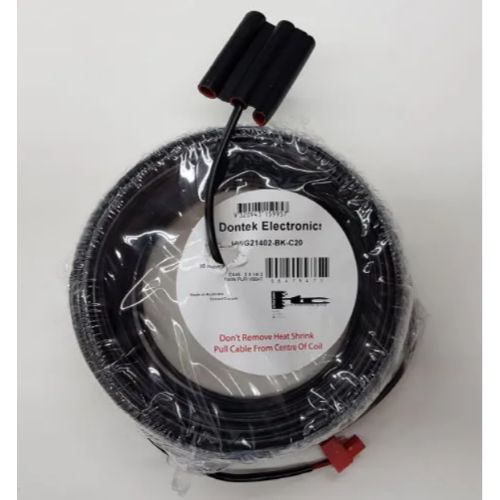

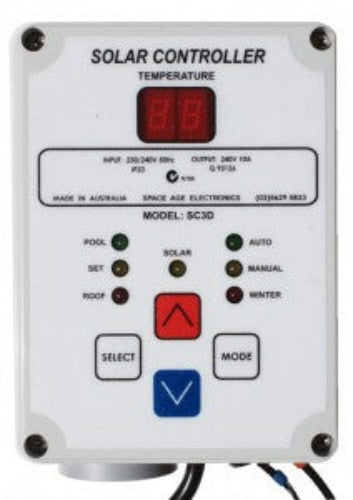

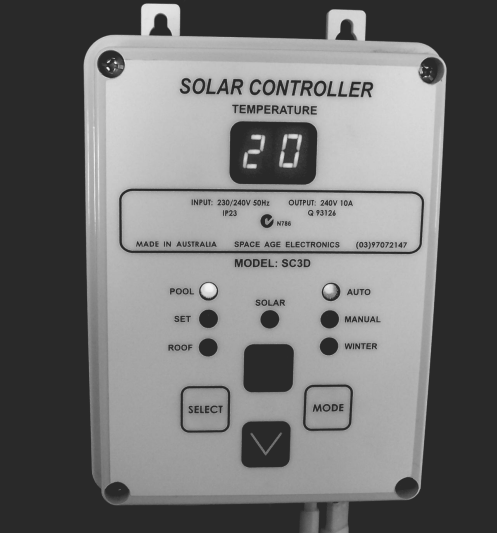

SOLAR POOL HEATING CONTROLLER SC3D complete set with all sensor cables

The SC3D Solar Controller from Space Age Electronics is used to heat your pool/spa in line with your solar collector.

Description: This Solar Controller is micro-processor based and works by sensing the temperature on the roof and the temperature of the pool. This controller is suitable for both integrated and independent systems, and will work with your solar pool heating system whether you have pool heating provisions or not.

The SC3D controller will turn on your solar heating system when there is a 7 degree differential between your pool water temperature and the roof temperature, if the pool temperature is below the set temperature. If the pool temperature rises to the set temperature, or the roof temperature falls to within 2 degrees of the pool water temperature, then the controller will switch off the solar pump and stop the water from heating any further.

Features:

• Sample and Hold Temperature Display
• 2 year manufacturer warranty
• Simple one touch control buttons
• Pool, set point and roof temperature display
• Winter mode
• Manual mode and Auto mode
• Heating and Heating/Cooling Mode (Tropical Mode)
• Temperature sensor error indication



Specifications:

INPUT: 230/240V 10A 50Hz

MAX TOTAL LOAD: 10A

IP23
