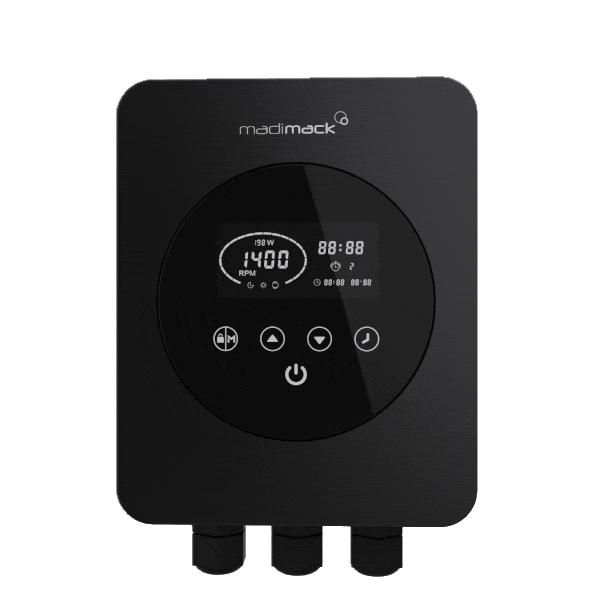

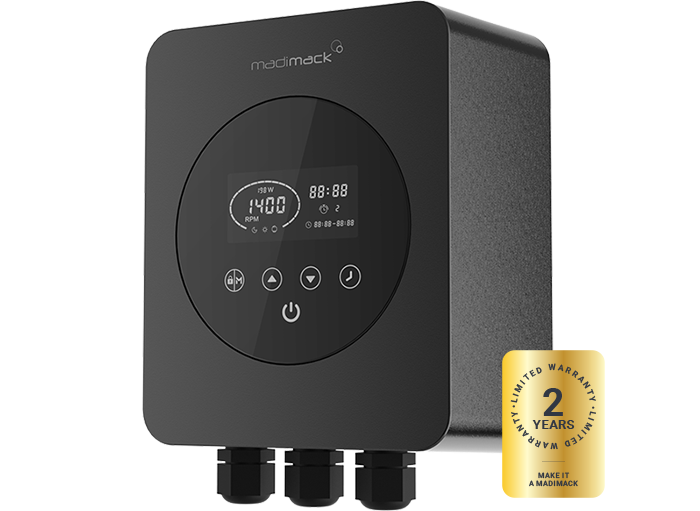

Madimack Inverter Plus 1.1kW – Smart Energy Upgrade for Single-Speed Pool Pumps

Description

Upgrade your existing single-speed pool pump without the expense of replacing the entire unit. The Madimack Inverter Plus 1.1kW (INVPLUS1100) is designed to convert compatible single-speed pool pumps into energy-efficient variable-speed systems, giving you greater control over pump speed, electricity consumption and everyday pool filtration.

By allowing your pool pump to operate at lower speeds when full power isn't required, the Inverter Plus can help reduce electricity costs, minimise operating noise and place less strain on your pump motor. It's a practical option for Australian pool owners looking to improve the efficiency of their existing filtration system.

Why Choose the Madimack Inverter Plus?

The Madimack Inverter Plus provides the benefits of variable-speed operation while allowing you to keep your existing compatible pool pump. Its adjustable speed settings make it easier to manage daily filtration requirements, while the digital touchscreen provides convenient access to operating information.

Running your pump at a lower speed can significantly reduce power consumption, particularly during longer filtration cycles. This can make a noticeable difference to ongoing running costs without requiring a complete pump replacement.

Key Features

• Variable Speed Conversion: Converts compatible single-speed pool pumps to variable-speed operation.

• Energy-Efficient Performance: Reduces electricity consumption by allowing the pump to operate at lower speeds.

• Adjustable Pump Speeds: Operating range of 1,200–2,900 RPM.

• Quieter Operation: Lower pump speeds help reduce noise around the filtration area.

• Digital Touchscreen: Convenient control and monitoring of pump operation.

• Compact Design: Suitable for installation near compatible existing pool filtration equipment.

• Existing Pump Compatibility: Designed for suitable single-phase pool pumps with motors within the controller's rated capacity.

Technical Specifications

• Brand: Madimack

• Product: Inverter Plus Variable Speed Pump Controller

• Model: INVPLUS1100

• Maximum Output Power: 1.1kW

• Input Power: Single Phase AC

• Input Voltage: 220–240V

• Input Frequency: 50Hz

• Output Voltage: Single Phase, 0–240V

• Maximum Current: 6A

• Speed Range: 1,200–2,900 RPM

• Cooling: Ventilation

• Dimensions: 187mm (L) x 110mm (H) x 155mm (W)

• Gross Weight: 3.0kg

• Net Weight: 2.7kg

Compatibility & Installation

The Madimack Inverter Plus 1.1kW is designed for use with compatible single-phase, single-speed pool pumps rated within its maximum output capacity.

Before purchasing, confirm your existing pump's electrical specifications, including motor power and current requirements, to ensure compatibility.

The controller must be installed and operated in accordance with Madimack's installation instructions, with adequate ventilation and protection from direct sunlight.
