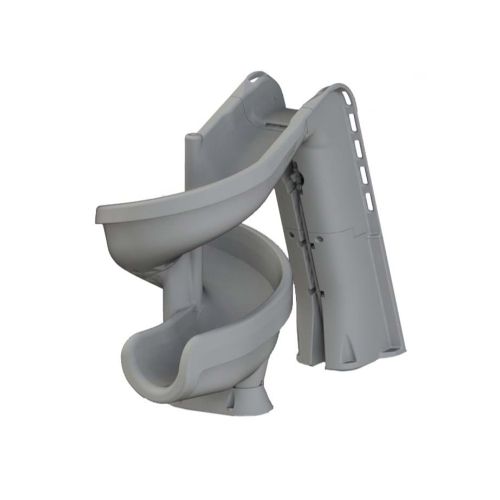

S.R. Smith HELIX2 Pool Slide – Grey Granite

Description

Create a backyard pool feature with the S.R. Smith heliX2 Pool Slide in Grey Granite. Its 360-degree spiral flume combines a twisting ride with an integrated fountain, bringing another dimension of fun to a suitable residential in-ground pool.

The heliX2 takes swimmers through a twisting spiral before splashing into the pool. Its deep flume and rotomoulded construction create a substantial poolside feature, while the Grey Granite finish complements a range of paving and outdoor settings.

An enclosed ladder and moulded handrails provide access to the slide entry. The integrated water system supplies the flume and fountain, which can run together or independently. Enjoy the fountain as a poolside feature between sliding sessions, or run both when it’s time for a swim.

Designed for suitable residential in-ground pools, the heliX2 accommodates users weighing up to 113kg. Before ordering, have your installer check your pool layout against the manufacturer’s installation requirements.

Make your pool a place everyone looks forward to spending time with the S.R. Smith heliX2 Pool Slide in Grey Granite. With a full 360-degree spiral, a flowing water flume and an integrated fountain, it brings a waterpark feel to your own backyard.

Key Features

• Full 360-degree spiral slide
• Deep flume with flowing water
• Integrated fountain that can operate independently of the flume water
• Durable rotomoulded construction
• Enclosed ladder and moulded handrails
• Grey Granite finish
• Fixed, deck-mounted design
• Maximum user weight of 113kg
• Three-year manufacturer’s warranty, subject to terms

Specifications

• Brand: S.R. Smith
• Model: heliX2
• Colour: Grey Granite
• Manufacturer’s part number: 640-209-58124-INT
• Overall height: Approximately 2.2m
• Flume length: Approximately 3.8m
• Slide configuration: 360-degree spiral
• Published deck-space guide: 2.7m × 1.5m
• Maximum user weight: 113kg
• Construction: Rotomoulded
• Mounting: Fixed deck installation
• Suitable application: Residential in-ground swimming pools only

Also available in Sandstone

Pool Suitability and Installation

The heliX2 needs more than enough space beside the pool. Your installer must confirm that the water depth, landing area, surrounding clearances and mounting surface meet the manufacturer’s requirements.

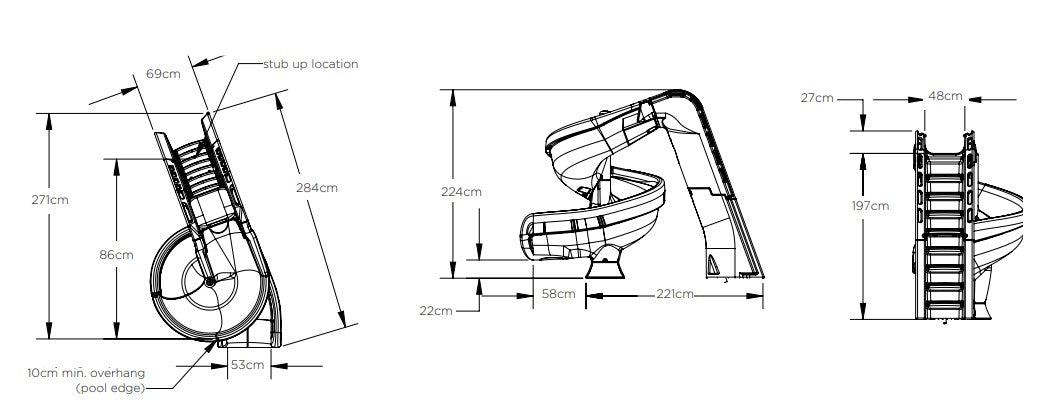

The published deck dimensions are a planning guide, rather than the complete installation footprint. Check the full placement drawings before choosing the slide’s position or preparing the mounting area.

The water delivery system can connect to a suitable pool return line or garden hose, following S.R. Smith’s instructions. Children must be supervised at all times when using the slide.

Shipping and Delivery

The heliX2 Grey Granite Pool Slide requires palletised freight. Contact My Online Pool Shop before ordering to confirm stock availability, current lead times, delivery charges and unloading requirements for your address.

• Published shipping weight: 176kg
• Published pallet dimensions: 225cm × 167cm × 120cm

Freight dimensions and weight are guides and should be confirmed when delivery is arranged.

Frequently Asked Questions

Is the heliX2 suitable for an above-ground pool?

No. The heliX2 is designed for residential in-ground swimming pools only.

How tall is the heliX2 pool slide?

The slide is approximately 2.2 metres high overall, with a spiral flume approximately 3.8 metres long.

What is the maximum weight limit?

The maximum user weight is 113kg. All users must also follow the manufacturer’s operating instructions.

Can the fountain run separately?

Yes. The fountain and flume water can operate independently or together.

Can I use a garden hose to supply the water?

The manufacturer provides for connection to a garden hose or suitable pool return line. The water supply and installation must meet the requirements in the installation instructions.

How much space do I need?

S.R. Smith publishes a deck-space guide of 2.7m × 1.5m. Your installer must also check the complete placement requirements, including pool depth, landing clearance and mounting position.

What warranty comes with the heliX2?

S.R. Smith lists a three-year manufacturer’s warranty, subject to its warranty terms and correct installation, use and maintenance.
