Product #:HAY-10-91036

Mfg. Part #:1B-SP2300HVS

• Retro-fits the EcoStar Variable Speed Pump.
• The MaxFlo VS340 offers up to 80% energy savings compared to single-speed pumps.
• It includes a built-in variable-speed drive and a permanent magnet motor for efficient operation.
• The pump is right-sized for 40mm and 50mm plumbing, avoiding the inefficiency of oversized models.
• It provides customisable speed and priming time to suit different pool system requirements.
• Suitable for both new pool builds and aftermarket upgrades, it ensures flexibility and easy integration.

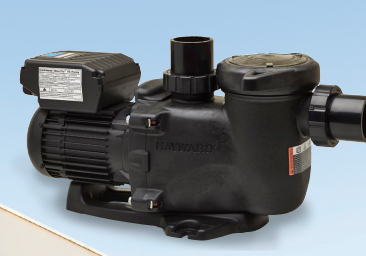

The Hayward MaxFlo VS340 is a variable-speed pool pump designed to deliver significant energy savings—up to 80%—compared to traditional single-speed pumps. Equipped with a built-in variable-speed drive and a high-efficiency permanent magnet motor, it offers an effective and economical upgrade for energy-conscious pool owners.

Engineered to suit medium-head applications, the MaxFlo VS340 is appropriately sized for pools with 40mm or 50mm plumbing, avoiding the inefficiencies of oversized pumps. It allows for fully customisable speed settings and priming times, making it suitable for both new builds and retrofit installations. The MaxFlo VS340 combines performance with savings, offering a faster return on investment through lower running costs.

Features and benefits:

 • Save Electricity & Money A reduction in pump speed of 50% will reduce energy consumption by up to 80%

• Better Filtration The filter can often remove smaller particles when the water moves through slower

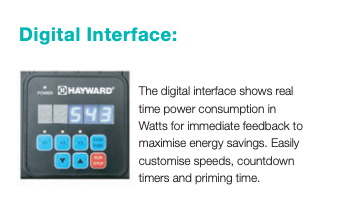

• Programmable Interface Easily customise speeds, countdown timers and priming time • Self Priming Up to 2.4M above water level

• Includes Unions Includes both 40mm and 50mm union tails

• Aligns with the entire MaxFlo line of pumps For seamless retrofit installations • Lexan See Through Cover For easy basket viewing

• It’s a Hayward! Hayward pioneered the thermosplastic pool pump in 1975
