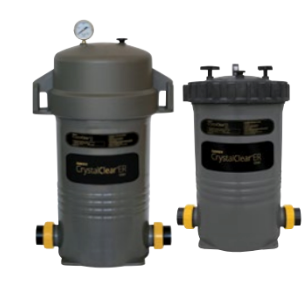

Davey CrystalClear ER DCC180 180ft² Premium Cartridge Filter
Keep your pool sparkling clean with the Davey CrystalClear ER DCC180 Premium Cartridge Filter. Designed for outstanding filtration performance with minimal maintenance, the DCC180 features an extra-large 180ft² (16.7m²) reusable polyester cartridge that captures fine debris while extending cleaning intervals.
Unlike traditional sand filters, the CrystalClear ER requires no backwashing, saving thousands of litres of water each year while delivering superior water clarity. Built with a seamless one-piece high-impact polypropylene tank, this premium cartridge filter is corrosion-resistant and designed for years of reliable performance.
Replaces Older Davey CrystalClear Cartridge Filters
The Davey CrystalClear ER DCC180 Premium Cartridge Filter is the latest generation replacement for many older Davey CrystalClear cartridge filters, including the Davey CrystalClear 39150 (150ft²).
While the DCC180 retains the same maximum flow rate of 450 litres per minute, it features a larger 180ft² filtration cartridge, providing increased dirt-holding capacity, longer cleaning intervals and improved water clarity.
The upgraded one-piece polypropylene tank and modern quick-connect unions offer improved durability and easier servicing. Because the DCC180 uses an updated tank and plumbing configuration, minor plumbing modifications may be required during installation. It is not a direct drop-in replacement, but it is the recommended upgrade for older 150ft² CrystalClear filters.
Common Replacement For
- Davey CrystalClear® Cartridge Filter 39150 (150ft²)
- Older Davey CrystalClear 150ft² cartridge filters
- Davey cartridge filters with a maximum flow rate of 450 L/min
If you're unsure whether this filter is the correct replacement for your existing Davey system, simply contact our team with your filter model number or send us a photo—we're happy to help ensure you order the correct replacement.
-
Key Features
- Large 180ft² (16.7m²) filtration area
- No backwashing required – saves water
- Heavy-duty reusable polyester filter cartridge
- One-piece high-impact polypropylene tank
- Corrosion and UV resistant construction
- Low-profile design for easy cartridge removal
- Manual air bleed valve for safe servicing
- Easy-to-read pressure gauge
- Supplied with 40mm/50mm quick-connect barrel unions
- Suitable for residential swimming pools
Benefits
Crystal Clear Pool Water
The premium pleated polyester cartridge captures fine dirt and debris, providing exceptional water clarity while maintaining excellent water flow.
Save Water
Because the DCC180 doesn't require backwashing, you'll save thousands of litres of water compared with traditional sand filters, making it ideal for water-conscious homeowners.
Longer Cleaning Intervals
The extra-large cartridge provides excellent dirt-holding capacity, allowing longer periods between cleans and reducing maintenance.
Easy Maintenance
Simply remove the cartridge, hose it clean and reinstall—no complicated valve adjustments or wasted water.
Built to Last
Manufactured from a seamless one-piece polypropylene tank, the CrystalClear ER is resistant to corrosion, chemicals and harsh Australian conditions.

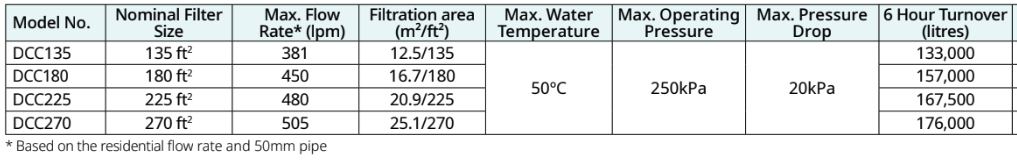

Technical Specifications
| Specification | Value |
|---|---|
| Brand | Davey |
| Model | DCC180 |
| Filter Area | 180ft² (16.7m²) |
| Maximum Flow Rate | 450 L/min |
| 6 Hour Pool Turnover | 157,000 Litres |
| Maximum Operating Pressure | 250kPa |
| Maximum Water Temperature | 50°C |
| Inlet / Outlet | 40mm / 50mm |
| Filter Type | Premium Cartridge |
| Tank Material | High-impact Polypropylene |
Why Choose the Davey CrystalClear ER DCC180?
✔ Premium Australian trusted brand
✔ Superior filtration without backwashing
✔ Lower water consumption
✔ Easy cartridge cleaning
✔ Durable corrosion-resistant construction
✔ Perfect for residential swimming pools
✔ 10-Year tank warranty*
*10 years on tank, 1 year on components.
Frequently Asked Questions
Does the DCC180 require backwashing?
No. The Davey CrystalClear ER DCC180 is a cartridge filter, so the cartridge is simply removed and hosed clean when required.
What size pool is it suitable for?
The DCC180 has a maximum flow rate of 450 litres per minute and a 6-hour turnover of up to 157,000 litres, making it suitable for many medium to large residential pools.
How often should the cartridge be cleaned?
This depends on pool usage and debris levels, but the large 180ft² cartridge is designed for extended filtration cycles before cleaning is required.
Is a replacement cartridge available?
Yes. Genuine Davey replacement cartridges are available for the CrystalClear ER DCC180 filter.
Although the Davey CrystalClear ER DCC180 has the same maximum flow rate of 450 L/min as the old Davey CrystalClear 39150 (150ft²), it is a new generation filter with a different tank design and dimensions.
Comparison
| Feature | Old CrystalClear 39150 | New CrystalClear ER DCC180 |
|---|---|---|
| Filtration Area | 150 ft² | 180 ft² |
| Max Flow | 450 L/min | 450 L/min |
| Connections | 40/50mm unions | 40/50mm quick-connect unions |
| Tank Design | Older ABS design | New one-piece polypropylene tank |
Suitable replacement for older Davey CrystalClear 39150 (150ft²) cartridge filters.
The DCC180 offers the same maximum flow rate (450 L/min) with an upgraded 180ft² filtration area for longer cleaning intervals and improved filtration performance. Minor plumbing modifications may be required during installation due to the updated tank and union design.
