The Acoustic Box

Acoustic Box Soundproof Pump & Filter Cover/Enclosure - 2218mm Wide

Acoustic Box Soundproof Pump & Filter Cover/Enclosure - 2218mm Wide

Regular price $2,649.99
Regular price Sale price $2,649.99
Sale Sold out
Shipping calculated at checkout.
Size: 2218mm Wide and

Check Delivery:

Product Description

The Acoustic Box comes in various sizes and configurations to cater for every layout.

The slim models cater for more confined spaces whilst the backless models cater for situations when you have less than 50mm from the equipment to the wall / fence.

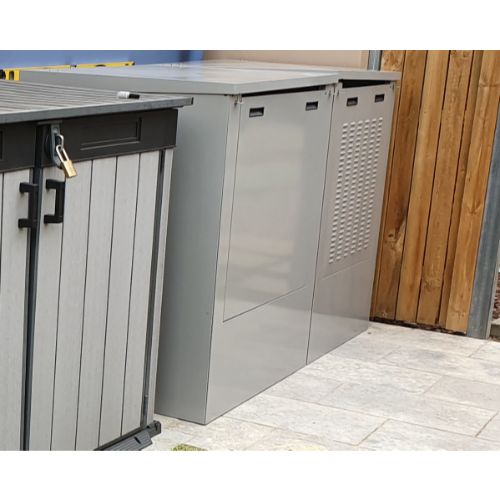

(this is a slim model)

The smaller models (< 1100mm in width) will easily fit a filter (cartridge or sand), a pump, a chlorinator, and the power points.

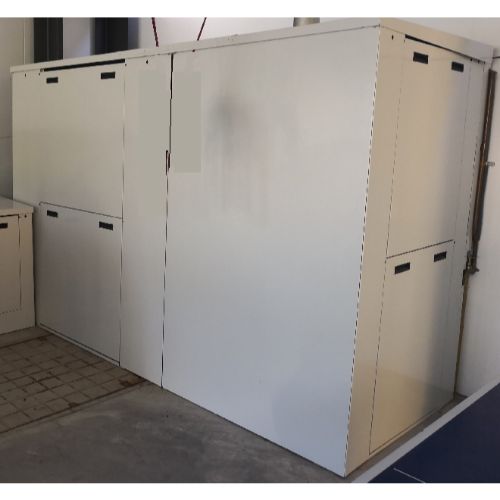

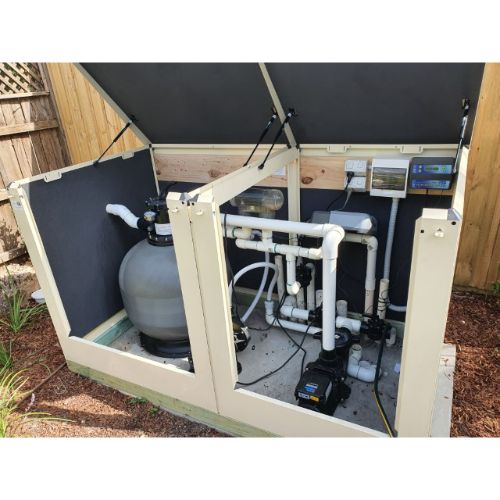

The larger models (> 1100mm in width) will fit a filter (sand or cartridge), multiple pumps, spa blowers, chlorinators and more.

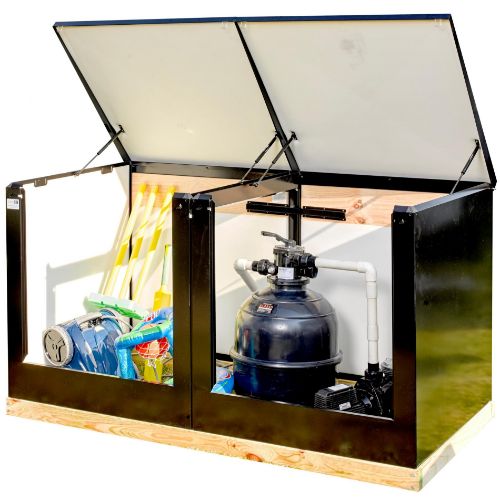

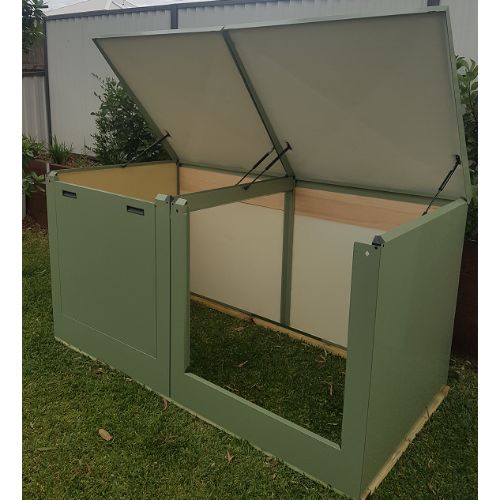

Single units have 1 access point from the front (fully removable door) and 1 from the top (lid opens by approx. 1 metre).

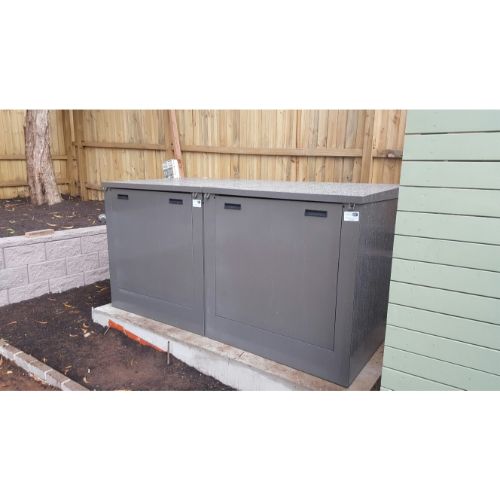

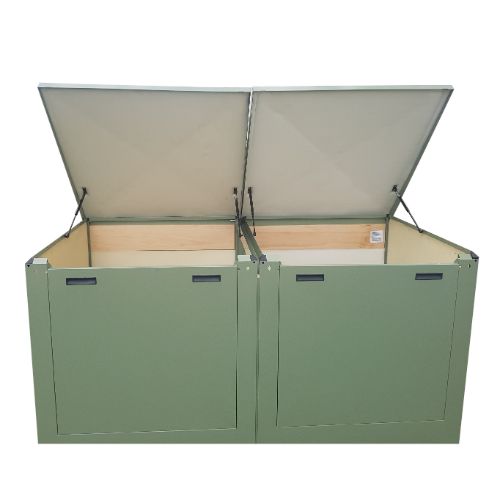

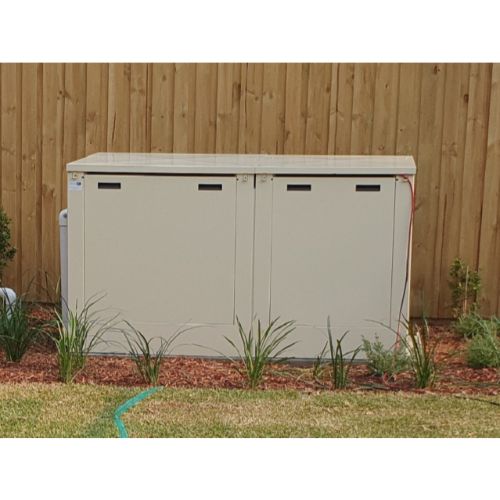

Double (and larger units) have 2+ removable front doors and 2+ top lids.

Colours:


Specifications:

  • Reduce noise by 80%
    29/400 grade foam on every panel reducing noise and certified by an independent Acoustic Engineer
  • Assemble in as little as 15 minutes
    NO NUTS, BOLTS or any TOOLS needed.
  • Save money on equipment
    Inferior or cheaper alternatives may cost you more money in the long run as they may be poorly ventilated and damage your equipment.
  • Save money on running costs
    A properly soundproofed box means that you can save money on electricity by turning on your equipment at night / during off-peak
  • Save money on design
    A custom designed box made from timber or other material will usually cost more - and won't look as good!
  • Ventilation gaps
    There're also 25mm ventilation gaps at the front and back of the box allowing for proper air-flow in and out of the box to protect the equipment.
  • Made of 0.9mm Australian made (BlueScope™) galvanized steel with a thick (Dulux Colorbond™) powder coat finish
  • Come with clear 3D & Illustrated installation instructions
  • 10 Standard colours
    custom colours available on request for a small fee
  • 100% Australian Made

    Assembly

    The unique design of our Pool Filter / Pump enclosures means that there are absolutely NO NUTS & BOLTS and NO need for any TOOLS to assemble the box.

    On average, models that are <1.7m in width (single) take 15-20 minutes to assemble and models that are >1.7m (double) take 45 - 60 minutes.

    The panels are joined together at the bottom by 4 corner brackets and locked at the top by 4 corner caps.

    The box comes flat packed and is either hand unloaded by our driver at destination (Sydney metro deliveries) or packed in large cardboard boxes (for regional and interstate deliveries) .

Notes with regards to measurements:

  • The standard models external measurements are actually the same as the internal measurements throughout the box with the exception of the bottom and top of the box - where the metal bends to allow for the acoustic foaming to be housed.
  • It is advisable to allow for an additional 10-20mm on all asides of your concrete slab (if laying the box on a slab)
  • The lid requires 45mm of clearance at the back to fully open. So please allow this (or more) if placing the box against a wall or other hard surfaces.
  • The Backless models are always 50mm deeper than the standard models
  • They are needed when there’s less than a 50mm gap from the equipment (EG a pipe of the filter) and the wall / fence. You will also need to allow approx. 20mm to slide in the rear panel i.e. 65-70mm in total.
  • The design of the backless models means the lid won’t hit the wall or fence behind when fully erect
  • Backless models have 3 additional parts (or multiples thereof for the larger models) instead of the rear panels. These are 2 wall strips ; one on either side of the enclosure and horizontal bridge which goes over from one wall strip to the other to fully enclose the box


*Please note images are for colour and size reference, measure and select the correct size you require with the colour of your choice.
